Liebherr LH24 material handler machine hire

Sorting grab capacity: 0.5 - 1.1 m³

Operating weight: 22,700 - 23,200 kg

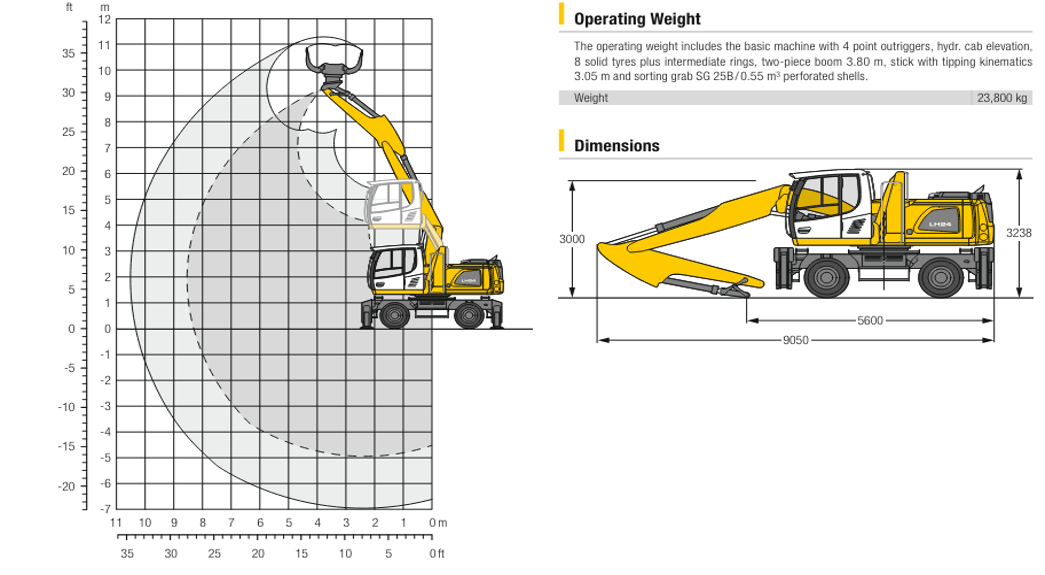

Reach: 12 m

Liebherr material handler hire

Liebherr has been designing and manufacturing material handlers for over 50 years. The new generation Liebherr material handlers, the LH 24 and LH 26, are high performance economical machines specifically designed for use in resource recovery and scrap recycling.

High engine performance

The optimised design of 110 kW / 115 kW engine supplies a high torque output for fast and strong movements. Load peaks are cleverly compensated for to ensure that maximum torque is available at all times for highest handling capacity.

High load capacities

The intelligent arrangement of the components in the new uppercarriage concept optimises the centre of gravity of the complete machine. This allows greater load capacities while retaining compact dimensions.

Captivating dynamics

The combination of an increased engine output and a higher pump delivery volume guarantees maximum acceleration and speed of working motions.

Intelligent electronics

The well-thought-out machine controls guarantee that the hydraulics are optimally configured for the task at hand. Here, the load sensing control ensures that the flow delivered by the pump is optimally distributed when movements overlap. Speed and power are available whenever they are needed.

Sensitive hydraulics

The optimal harmonisation between the engine and the control valve allows a fast and direct response from the hydraulics to the input command. This is controlled proportionally to enable smooth and gentle movements to be executed when the joystick is moved.

Firm and stable positioning

An essential prerequisite for precise working and maximum handling capacity is the firm and stable positioning of the machine. The design of the Liebherr undercarriage optimises the way forces are induced on components to minimise stress and guarantee maximum stability and durability.

Quality down to the last detail

Every day Liebherr material handlers show their qualities in a very wide range of industrial applications all over the world. Years of experience, continuous development and the latest technologies provide maximum safety in use. Their robust, compact design and the use of components produced in-house ensure that the LH 24 and LH 26 material handling machines are designed for a long service life.

Perfection at a glance – when technology is comfortable

The newly designed operator’s work station sets new standards in comfort. The Liebherr deluxe cab is spacious, has an ergonomic design and is very quiet. This ensures that the operator remains fully focused throughout the working day and enables him to deliver a consistently high performance.


	Liebherr LH24	3.0 m		4.5 m		6.0 m		7.5 m		9.0 m	10.5 m	12.0 m
m	Undercarriage														m
9.0	Stabilizers raised												3.6*	3.6*	4.4
	4 pt. outriggers down												3.6*	3.6*	4.4
7.5	Stabilizers raised					3.7	3.7*						2.9*	2.9*	6.3
7.5		4 pt. outriggers down					3.7*	3.7*						2.9*	6.3	2.9*
6.0	Stabilizers raised			5.0*	5.0*	3.8	4.9*						2.5	2.7*	7.4
6.0		4 pt. outriggers down			5.0*	5.0*	4.9*	4.9*						2.7*	7.4	2.7*
4.5	Stabilizers raised			5.7	6.3*	3.8	5.1	2.5	3.5				2.1	2.6*	8.1
4.5		4 pt. outriggers down			6.3*	6.3*	5.9*	5.9*	4.5*	4.5*				2.6*	8.1	2.6*
3.0	Stabilizers raised	9.8*	13.7*	5.5	7.5	3.7	5.0	2.5	3.5				1.9	2.7*	8.4
3.0		4 pt. outriggers down	13.7*	13.7*	8.8*	8.8*	6.7*	6.7*	5.6	5.6*				2.7*	8.4	2.7*
1.5	Stabilizers raised	9.6	13.0*	5.4	7.4	3.7	5.0	2.4	3.4				1.8	2.6	8.5
1.5		4 pt. outriggers down	13.0*	13.0*	10.0*	10.0*	7.3*	7.3*	5.5	5.8*				2.8*	8.5	2.8*
0	Stabilizers raised	9.5	13.7	5.3	7.4	3.5	4.9	2.3	3.2				1.8	2.7	8.3
0		4 pt. outriggers down	14.6*	14.6*	10.4*	10.4*	7.5	7.5*	5.4	5.9*				3.2*	8.3	3.2*
– 1.5	Stabilizers raised	8.9	13.9	5.0	7.2	3.2	4.6	2.1	3.1				2.0	2.9	7.8
– 1.5		4 pt. outriggers down	16.6*	16.6*	10.5*	10.5*	7.6*	7.6*	5.3	5.4*				3.8*	7.8	3.8*
– 3.0	Stabilizers raised	8.7	13.7	4.7	6.9	3.0	4.3						2.4	3.5	6.9
– 3.0		4 pt. outriggers down	17.2*	17.2*	10.8*	10.8*	7.0*	7.0*						4.5*	6.9	4.5*
– 4.5	Stabilizers raised	8.4	13.3	4.5	6.7								4.0	5.7*	4.9
– 4.5		4 pt. outriggers down	13.9*	13.9*	7.0*	7.0*								5.7*	4.9	5.7*

		Height					Can be slewed through 360°					In longitudinal position of undercarriage					Max. reach
* Limited by hydr. capacity
The lift capacities on the stick end without attachment are stated in metric tons (t) and are valid on a firm, level supporting surface with blocked oscillating axle. These capacities can be slewed through 360° with the undercarriage in the transverse position. Capacities in the longitudinal position of the undercarriage (+ / – 15°) are specified over the steering axle with the stabilizers raised and over the rigid axle with the stabilizers down. The values apply with the optimum positioning of the two-piece boom. Indicated loads based on the ISO 10567 standard and do not exceed 75 % of tipping or 87 % of hydraulic capacity. The lift capacity of the unit is limited by its stability, the lifting capability of the hydraulic elements, or the maximum permissible lifting capacity of the load hook. In accordance with the harmonised European Standard EN 474-5, hydraulic excavators used for lifting operations must be equipped with pipe fracture safety valves, an overload warning device, a load hook and a lift capacity chart.
