Volvo L110H wheel loader hire

Volvo H-Series wheel loaders

H-Series wheel loaders are built with an industry-leading, strong frame, which, combined with the ideally-matched genuine Volvo drivetrain, achieves long-lasting performance. And with the help of a range of smart apps you can boost the efficiency of your operation from the comfort of the cab.

Versatile

Take on any application with the H-Series wheel loaders, equipped with the Torque Parallel (TP) linkage for ultimate versatility. Not only does the TP linkage offer high breakout, tilt in and lifting forces, it keeps the attachments parallel throughout the lifting range for exceptional load stability and easy bucket filling. Change tools in a matter of seconds with the Volvo attachment bracket.

Up to 20% greater fuel efficiency

Achieve up to 20% greater fuel efficiency thanks to advanced features, such as Eco pedal and the new optional lock-up function. The lock-up feature eliminates losses in the torque converter by creating a direct drive between the engine and transmission, which work in harmony with the axles. To improve cycle times and fuel use, customise the lock-up engagement of your machine.

Spacious Volvo cab

Hard work has never felt so easy from the spacious Volvo cab, featuring your choice of comfortable operator seat, as well as ergonomic controls. Perform basic configurations using the information panel, and keep an eye on the operation with the Contronic display.

Load Assist

Gain access to a set of smart apps and boost the efficiency of your operation with Load Assist, powered by the 12” Volvo Co-Pilot monitor.

Durable

Built by Volvo, for Volvo, you can count on the proven design of the latest wheel loaders to meet the demands of tough job sites. Renowned for their reliability, the next-generation H-Series wheel loaders are built with an industry-leading, strong frame, which, combined with the ideally-matched genuine Volvo drivetrain, achieves long-lasting performance.

L110H
Tires 23.5R25 XHA2 L3			REHANDLING*															GENERAL PURPOSE																			ROCK**	LIGHT MATERIAL					LONG BOOM***
				3.5 m³ STE P BOE					3.5 m³ STE H BOE									3.0 m³ STE P T							3.0 m³ STE H T					3.4 m³ STE P BOE			3.4 m³ STE H BOE	2.7 m³ SPN P T SEG	5.5 m³ LM H			9.5 m³ LM H
Volume, heaped ISO/SAE	m³	3.5					3.5									3.0							3.0					3.4			3.4	2.7	5.5			9.5
Volume at 110% fill factor	m³	3.9					3.9									3.3							3.3					3.7			3.7	3.0	6.1			10.5
Static tipping load, straight	kg	14 780					14 070									13 770							13 100					13 350			12 680	13 780	11 980			12 070	-2 540
at 35° turn	kg	13 140					12 470									12 270							11 640					11 860			11 240	12 240	10 550			10 610	-2 330
at full turn	kg	12 650					12 000									11 820							11 210					11 420			10 810	11 780	10 130			10 180	-2 270
Breakout force	kN	162.0					149.7									175.8							161.0					157.7			145.9	143.1	115.0			100.3

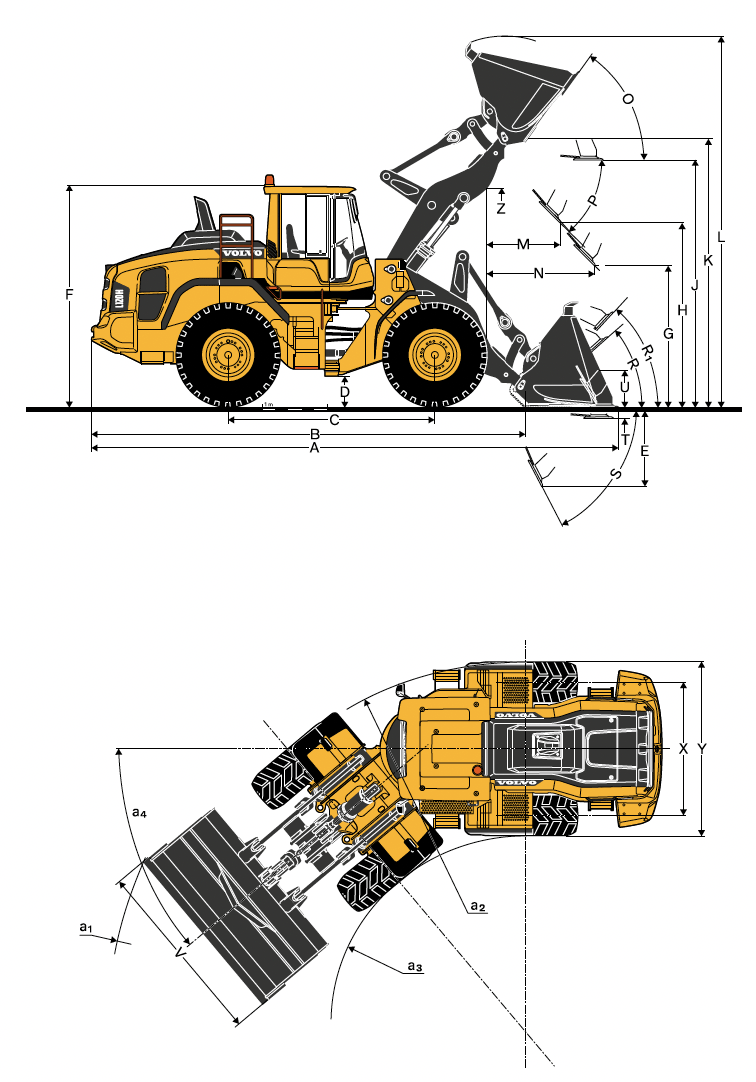

A	mm	8 040					8 150									8 120							8 220					8 010			8 120	8 310	8 500			8 800	510
E	mm	1 220					1 320									1 350							1 450					1 260			1 360	1 510	1 700			1 960	-10
H	mm	2 820					2 750									2 720							2 660					2 790			2 720	2 610	2 420			2 220	510
L	mm	5 440					5 510									5 550							5 610					5 620			5 670	5 550	5 850			6 010	520
M	mm	1 170					1 250									1 260							1 350					1 200			1 280	1 400	1 520			1 730	-30
N	mm	1 710					1 760									1 750							1 800					1 730			1 770	1 810	1 800			1 820	450
V	mm	3 000					3 000									2 880							2 880					2 880			2 880	2 880	3 000			3 400
a₁ clearance circle	mm	12 930					12 980									12 710							12 770					12 660			12 710	12 830	13 060			13 610	440
Operating weight	kg	19 270					19 510									18 360							18 560					18 560			18 760	19 560	19 100			19 320	300
* Measured with additional rehandling counterweight | ** With MICHELIN 23,5R25 XMINE D2 L5 Tire | *** Based on 3.0 m³ STE H T bucket
