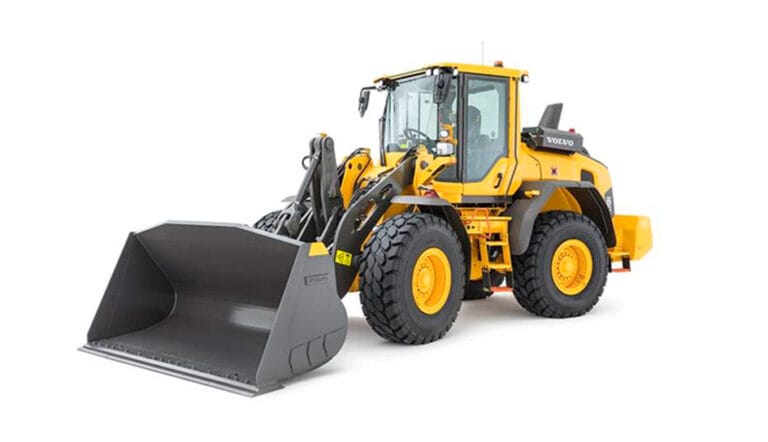

Volvo H-Series wheel loaders are built with an industry-leading, strong frame, which, combined with the ideally-matched genuine Volvo drivetrain, achieves long-lasting performance. And with the help of a range of smart apps you can boost the efficiency of your operation from the comfort of the cab.
Take on any application with the H-Series wheel loaders, equipped with the Torque Parallel (TP) linkage for ultimate versatility. Not only does the TP linkage offer high breakout, tilt in and lifting forces, it keeps the attachments parallel throughout the lifting range for exceptional load stability and easy bucket filling. Change tools in a matter of seconds with the Volvo attachment bracket.

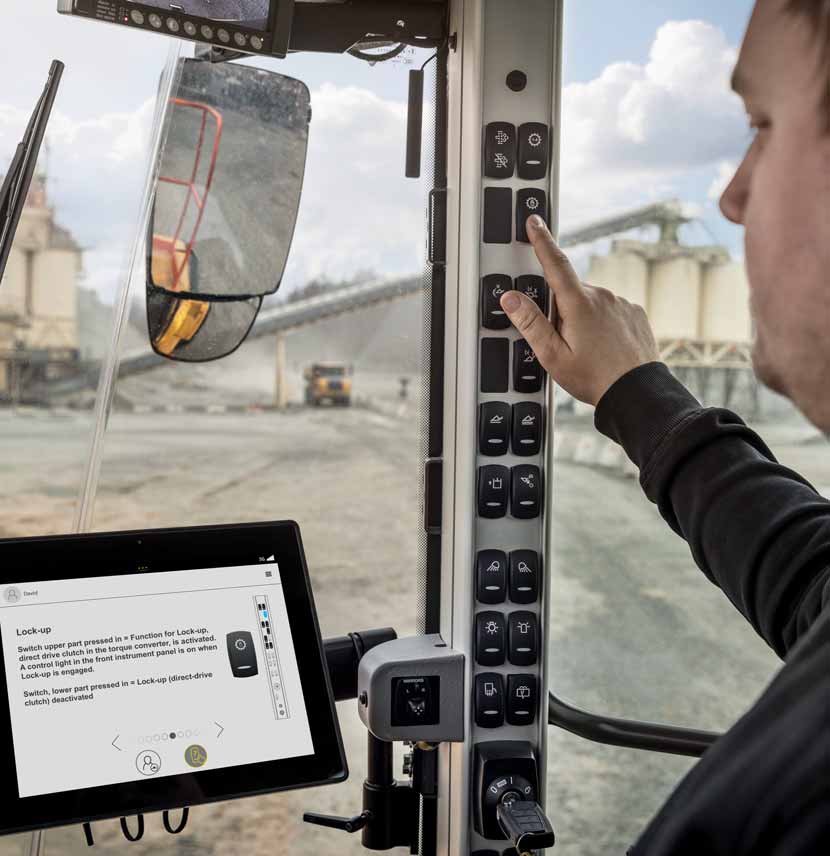

Achieve up to 20% greater fuel efficiency thanks to advanced features, such as Eco pedal and the new optional lock-up function. The lock-up feature eliminates losses in the torque converter by creating a direct drive between the engine and transmission, which work in harmony with the axles. To improve cycle times and fuel use, customise the lock-up engagement of your machine.

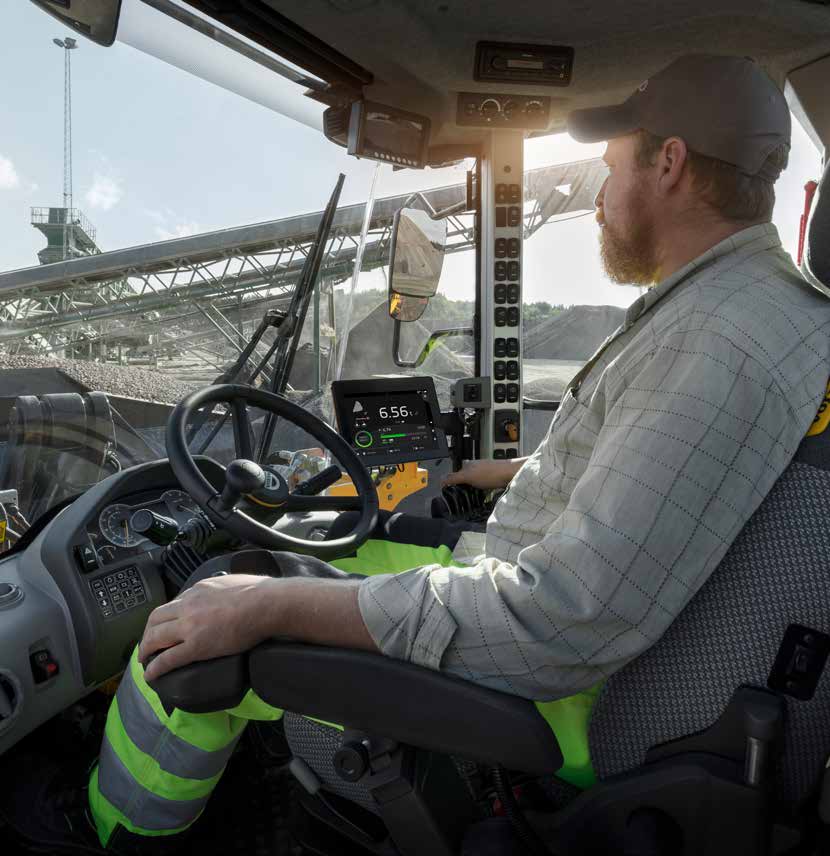

Hard work has never felt so easy from the spacious of the Volvo cab, featuring your choice of comfortable operator seat, as well as ergonomic controls. Perform basic configurations using the information panel, and keep an eye on the operation with the Contronic display.
Gain access to a set of smart apps and boost the efficiency of your operation with Load Assist, powered by the 12” Volvo Co-Pilot monitor.
Built by Volvo, for Volvo, you can count on the proven design of the latest wheel loaders to meet the demands of tough job sites. Renowned for their reliability, the next-generation H-Series wheel loaders are built with an industry-leading, strong frame, which, combined with the ideally-matched genuine Volvo drivetrain, achieves long-lasting performance.
L150H | ||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Tires 26.5 R25 L3 | REHANDLING | GENERAL PURPOSE | ROCK*** | LIGHT MATERIAL | LONG BOOM* | |||||||||||||||||
![]() | ![]() | ![]() | ![]() | ![]() | ![]() | ![]() | ![]() | ![]() | ![]() | |||||||||||||
4.0 m³ STE P BOE | 4.4 m³ STE P BOE | 4.8 m³ STE P BOE | 5.2 m³ STE P BOE | 4.0 m³ STE P T SEG | 4.4 m³ STE P T SEG | 4.5 m³ STE P T SEG | 3.5 m³ SPN P T SEG | 6.8 m³ LM P | 4.0 m³ STE P T SEG | |||||||||||||
Volume, heaped ISO/SAE | m³ | 4 | 4.4 | 4.8 | 5.2 | 4 | 4.4 | 4.5 | 3.5 | 6.8 | 4 | |||||||||||
Volume at 110% fill factor | m³ | 4.4 | 4.8 | 5.3 | 5.7 | 4.4 | 4.8 | 5.0 | 3.9 | 7.5 | 4.4 | |||||||||||
Static tipping load, straight | kg | 20 500 | 20 230 | 19 950 | 19 800 | 18 100 | 17 690 | 17 670 | 18 730 | 16 360 | -3 550 | |||||||||||
at 35° turn | kg | 18 320 | 18 050 | 17 780 | 17 630 | 16 190 | 15 780 | 15 760 | 16 730 | 14 520 | -3 270 | |||||||||||
at full turn | kg | 18 070 | 17 810 | 17 530 | 17 380 | 15 970 | 15 560 | 15 550 | 16 500 | 14 310 | -3 230 | |||||||||||
Breakout force | kN | 201.3 | 191.7 | 183.2 | 182.7 | 202 | 192 | 184 | 188.0 | 140.0 | +9 | |||||||||||
A | mm | 8 600 | 8 680 | 8 750 | 8 750 | 8 790 | 8 860 | 8 930 | 8 850 | 9 230 | +520 | |||||||||||
E | mm | 1 230 | 1 300 | 1 360 | 1 370 | 1 400 | 1 460 | 1 520 | 1 450 | 1 790 | +10 | |||||||||||
H**) | mm | 3 020 | 2 970 | 2 920 | 2 920 | 2 890 | 2 850 | 2 800 | 2 870 | 2 620 | +570 | |||||||||||
L | mm | 5 720 | 5 770 | 5 880 | 5 870 | 5 880 | 5 990 | 6 040 | 5 970 | 6 140 | +570 | |||||||||||
M**) | mm | 1 220 | 1 270 | 1 320 | 1 320 | 1 360 | 1 410 | 1 450 | 1 420 | 1 700 | -20 | |||||||||||
N**) | mm | 1 800 | 1 830 | 1 860 | 1 860 | 1 880 | 1 910 | 1 930 | 1 930 | 1 960 | +450 | |||||||||||
V | mm | 3 200 | 3 200 | 3 200 | 3 400 | 3 230 | 3 200 | 3 000 | 3 230 | 3 200 | 0 | |||||||||||
a₁ clearance circle | mm | 14 640 | 14 670 | 14 700 | 14 890 | 14 750 | 14 760 | 14 600 | 14 800 | 14 940 | +340 | |||||||||||
Operating weight | kg | 25 090 | 25 300 | 25 500 | 25 620 | 24 090 | 24 450 | 24 420 | 25 320 | 24 920 | +410 | |||||||||||
*) Measured with 4.0 m³ GP STE P T SEG bucket Note: This only applies to genuine Volvo attachments. **) Measured to the tip of the bucket teeth or bolt-on edge. Dump height to bucket edge measured at 45° dump angle. (Spade nose buckets at 42°.) ***) Measured with 26.5 R25 L5 tires | ||||||||||||||||||||||

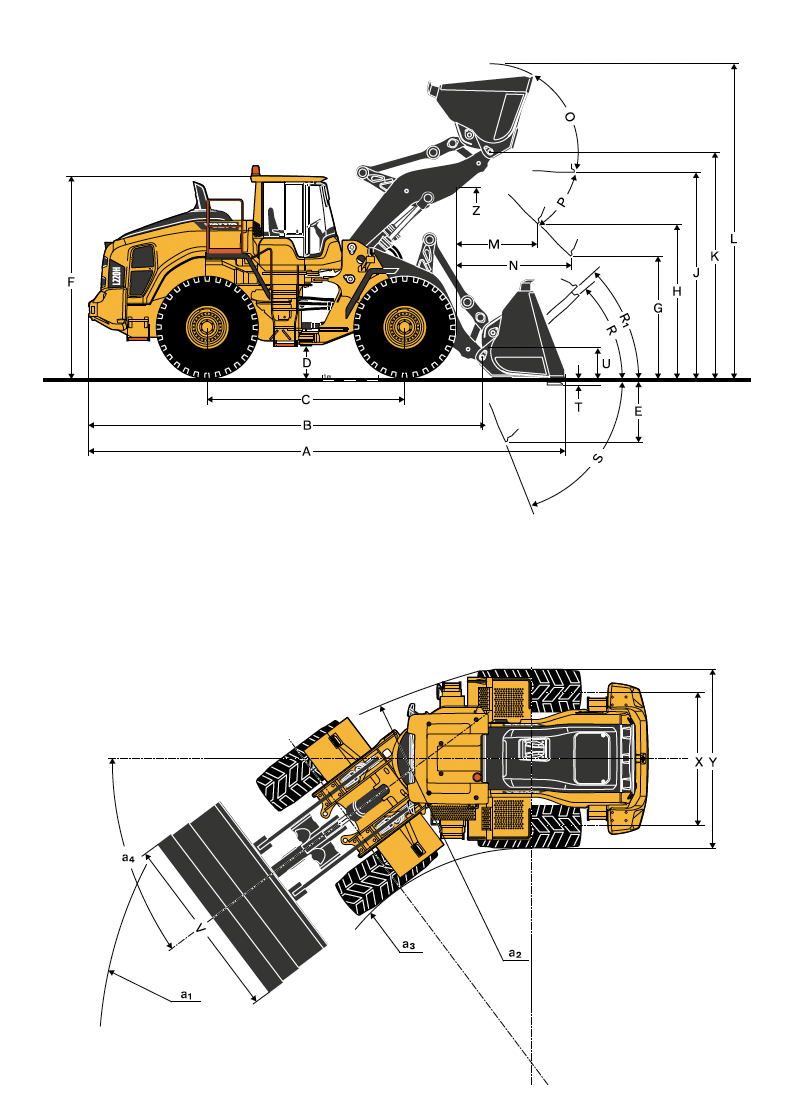

Volvo L150 H | Standard Boom | Long Boom | ||||
---|---|---|---|---|---|---|
B | Mm | 7070 | 7570 | |||
C | Mm | 3550 | 3550 | |||
D | Mm | 480 | 470 | |||
F | Mm | 3580 | 3570 | |||
G | Mm | 2134 | 2157 | |||
J | Mm | 3920 | 4490 | |||
K | Mm | 4340 | 4900 | |||
O | ◦ | 58 | 59 | |||
P | ◦ | 50 | 49 | |||
R | ◦ | 45 | 48 | |||
R* | ◦ | 48 | 53 | |||
S | ◦ | 66 | 61 | |||
T | Mm | 93 | 149 | |||
U | Mm | 520 | 640 | |||
X | Mm | 2280 | 2280 | |||
Y | Mm | 2960 | 2960 | |||
Z | Mm | 3510 | 3960 | |||
(a2) | Mm | 6790 | 6790 | |||
(a3) | Mm | 3820 | 3820 | |||
(a4) | ±◦ | 37 | 37 | |||
Bucket: L150H: 4.0 m³ GP STE P T SEG | ||||||
