Volvo L90H wheel loader hire

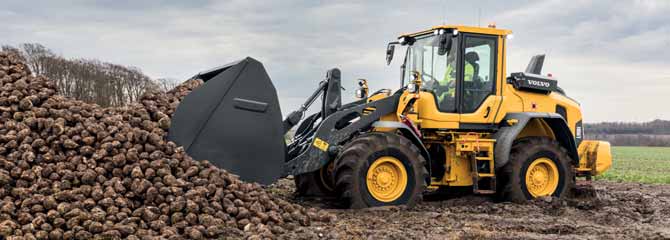

Volvo H series wheel loaders

H-Series wheel loaders are built with an industry-leading, strong frame, which, combined with the ideally-matched genuine Volvo drivetrain, achieves long-lasting performance. And with the help of a range of smart apps you can boost the efficiency of your operation from the comfort of the cab.

Versatile

Take on any application with the H-Series wheel loaders, equipped with the Torque Parallel (TP) linkage for ultimate versatility. Not only does the TP linkage offer high breakout, tilt in and lifting forces, it keeps the attachments parallel throughout the lifting range for exceptional load stability and easy bucket filling. Change tools in a matter of seconds with the Volvo attachment bracket.

More efficient

Achieve up to 20% greater fuel efficiency thanks to advanced features, such as Eco pedal and the new optional lock-up function. The lock-up feature eliminates losses in the torque converter by creating a direct drive between the engine and transmission, which work in harmony with the axles. To improve cycle times and fuel use, customise the lock-up engagement of your machine.

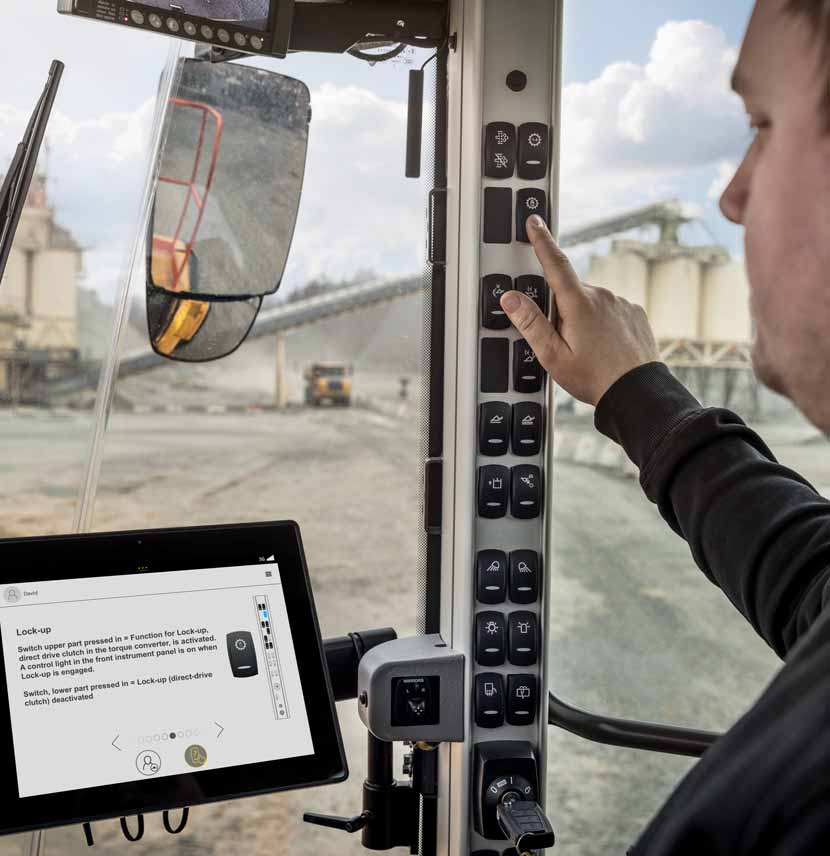

Cab comfort

Hard work has never felt so easy from the spacious of the Volvo cab, featuring your choice of comfortable operator seat, as well as ergonomic controls. Perform basic configurations using the information panel, and keep an eye on the operation with the Contronic display.

Load assist

Gain access to a set of smart apps and boost the efficiency of your operation with Load Assist, powered by the 12” Volvo Co-Pilot monitor.

Durable

Built by Volvo, for Volvo, you can count on the proven design of the latest wheel loaders to meet the demands of tough job sites. Renowned for their reliability, the next-generation H-Series wheel loaders are built with an industry-leading, strong frame, which, combined with the ideally-matched genuine Volvo drivetrain, achieves long-lasting performance.

L90H*
BR 20,5R25 VJT L3	GENERAL PURPOSE																																											GRADING	LIGHT MATERIAL					LONG BOOM
		2.3 m³ STE H BOE							2.5 m³ STE H T											2.5 m³ STE P BOE									2.5 m³ STE H BOE							2.6 m³ STE P BOE			2.8 m³ STE P BOE	2.8 m³ GRB H BOE	4.1 m³ LM H			7 m³ LM H
Volume, heaped ISO/SAE	2.3							2.5											2.5									2.5							2.6			2.8	2.8	4.1			7.0	0
Volume at 110% fill factor	2.5							2.8											2.8									2.8							2.9			3.1	3.1	4.5			7.7	0
Static tipping load, straight	11 410							11 330											11 940									11 320							11 820			11 910	9 260	10 820			10 530	-1 800
at 35° turn	10 120							10 030											10 620									10 030							10 500			10 580	8 190	9 550			9 250	-1 650
at full turn	9 730							9 650											10 220									9 650							10 110			10 190	7 870	9 180			8 870	-1 600
Breakout force	134.9							129.9											141.3									127.1							133.8			135.6	92.2	100.7			87.0	1.7

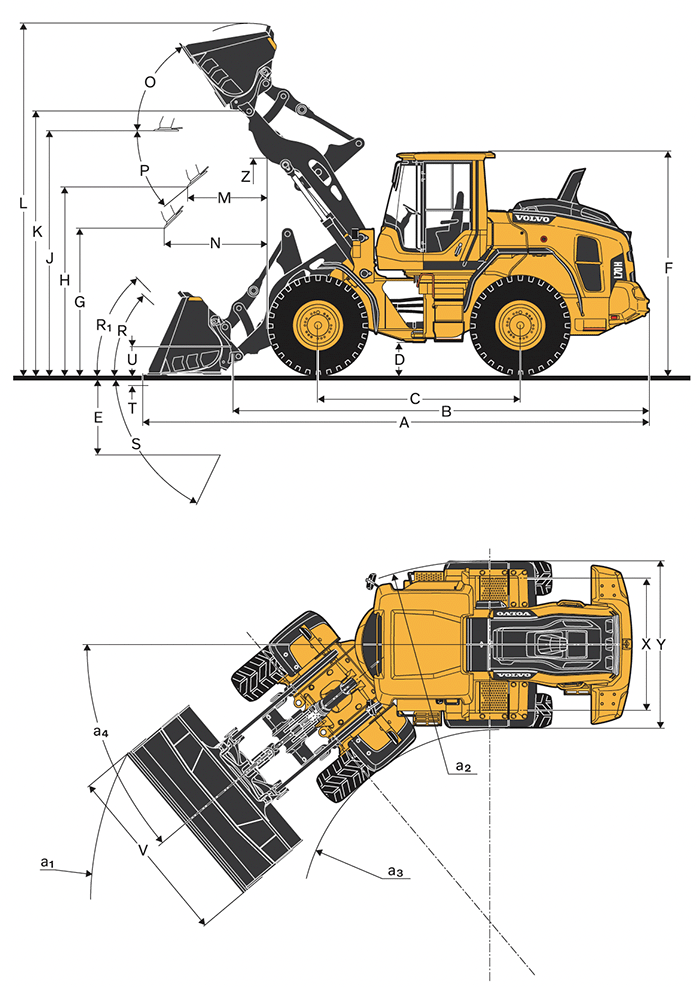

A	7 600							7 850											7 550									7 690							7 630			7 610	8 170	8 050			8 350	410
E	1 200							1 410											1 150									1 280							1 220			1 200	1 760	1 600			1 860	-10
H	2 890							2 730											2 920									2 830							2 870			2 880	2 400	2 610			2 410	430
L	5 450							5 510											5 440									5 530							5 520			5 500	4 900	5 630			5 840	420
M	1 010							1 170											960									1 070							1 020			1 000	1 210	1 350			1 560	-50
N	1 670							1 720											1 650									1 700							1 670			1 660	1 520	1 710			1 710	360
V	2 650							2 650											2 650									2 500							2 500			2 750	2 880	2 750			3 000	0
a1 clearance circle	12 140							12 290											12 130									12 060							12 040			12 250	12 980	12 500			12 920	340
Operating weight	15 560							15 630											15 380									15 600							15 390			15 360	15 700	15 850			16 280	290
		*Calculated with additional protective guarding.
